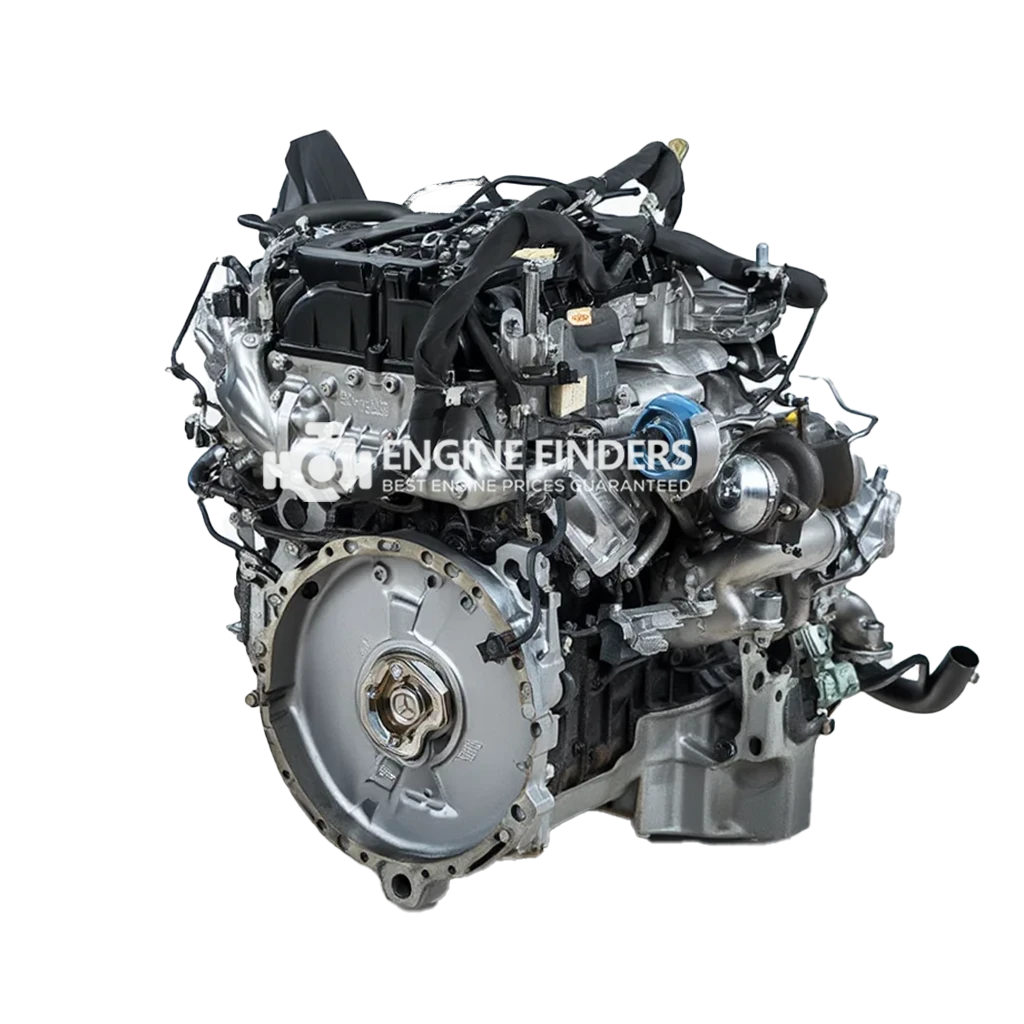

Buy Mercedes-Benz 2.1L I4 BlueTEC (OM 651.010) Diesel Engine - 12 Month Unlimited Mileage Warranty

🛠️ What Happens: "Black death" carbon buildup around injectors, rough idle, fuel smell in cabin.

⚠️ Root Cause: Copper sealing washer fails due to heat cycling or improper torque during injector install, causing combustion gas blow-by.

🔧 Immediate Fix: Remove injectors, reface injector seat, fit new copper seal and bolt using correct torque + angle tightening.

💡 Prevention: Use genuine washers and always replace bolts when servicing injectors; re-check torque after heat cycling.

🛠️ What Happens: Limp mode, DPF warning light, reduced fuel economy, delayed throttle response.

⚠️ Root Cause: DPF regen process interrupted due to short journeys or faulty temperature sensors; soot load becomes excessive.

🔧 Immediate Fix: Perform manual regen via diagnostic tool; replace sensors or clean/replace DPF if soot level too high.

💡 Prevention: Drive at motorway speed for 20 minutes every 500 miles; use low-ash oil to reduce soot accumulation.

🛠️ What Happens: Rattle on cold start, check engine light, cam/crank correlation fault codes.

⚠️ Root Cause: Chain elongates due to wear in links and tensioner failure, leading to valve timing deviation.

🔧 Immediate Fix: Replace timing chain, guides, and tensioner as a full kit; realign camshafts and crank timing.

💡 Prevention: Use 5W 30 C3 oil changed every 8,000 miles; listen for early rattles and scan for P0016/P0017.

🛠️ What Happens: Hard starting in cold weather, warning lights, occasional misfire on cold start.

⚠️ Root Cause: Glow plug control module fails internally, stopping current from reaching plugs even if they’re functional.

🔧 Immediate Fix: Replace glow plug controller unit; test resistance on each glow plug for faults before refitting.

💡 Prevention: Use battery conditioner during winter storage; replace glow plugs as a set every 100,000 miles.

🛠️ What Happens: Vibration at idle, squealing belt noise, potential alternator or steering assist failure.

⚠️ Root Cause: Rubber harmonic damper in crankshaft pulley deteriorates and delaminates with age.

🔧 Immediate Fix: Replace crank pulley with updated version; inspect belt and tensioner for damage.

💡 Prevention: Visually inspect pulley every 30k mi; replace as preventive maintenance around 100k mi.

🛠️ What Happens: Flat power delivery, increased fuel usage, check engine light with P2004/P2008 codes.

⚠️ Root Cause: Motor controlling intake flaps fails or the flap mechanism binds due to oil mist and soot buildup.

🔧 Immediate Fix: Replace swirl flap motor and clean intake tract; inspect linkage arms for play.

💡 Prevention: Install oil catch can; clean intake system every 50,000 mi as part of diesel intake service.

🛠️ What Happens: Oil seepage under the intake manifold, low oil level warnings, oil smell in engine bay.

⚠️ Root Cause: Seals around the oil cooler harden and shrink due to heat cycles, causing gradual leaks.

🔧 Immediate Fix: Remove intake manifold and replace oil cooler gasket set; clean oil residue thoroughly.

💡 Prevention: Replace seals every 80-100k mi or at first sign of oil dampness around the V area.

🛠️ What Happens: Sudden drop in power, turbo disabled, fault codes P0236/P0299 stored in ECU.

⚠️ Root Cause: Sensor becomes fouled by oil vapour or carbon particles, sending incorrect boost values.

🔧 Immediate Fix: Clean or replace MAP/boost pressure sensor; inspect wiring harness for oil contamination.

💡 Prevention: Service PCV system and intercooler regularly; clean sensor every 30k mi using non-residue cleaner.
